What cantilever dimensions do my long loads need?

Arm length follows bundle depth, and arm spacing follows length and stiffness. Column height must fit clear height and forklift lift. Measure actual bundles so the shortest flexible stock is supported without sagging.

How much weight can cantilever rack hold?

There is no single cantilever capacity. Arm ratings and column ratings depend on the configuration. We size the system from your heaviest bundle and support spacing, then provide capacities on load plaques.

What aisle width does cantilever rack need?

The truck and bundle length set the width. Side-loaders often need less turning space than counterbalanced forklifts carrying long loads. Send truck specifications and actual load dimensions before we position the rows.

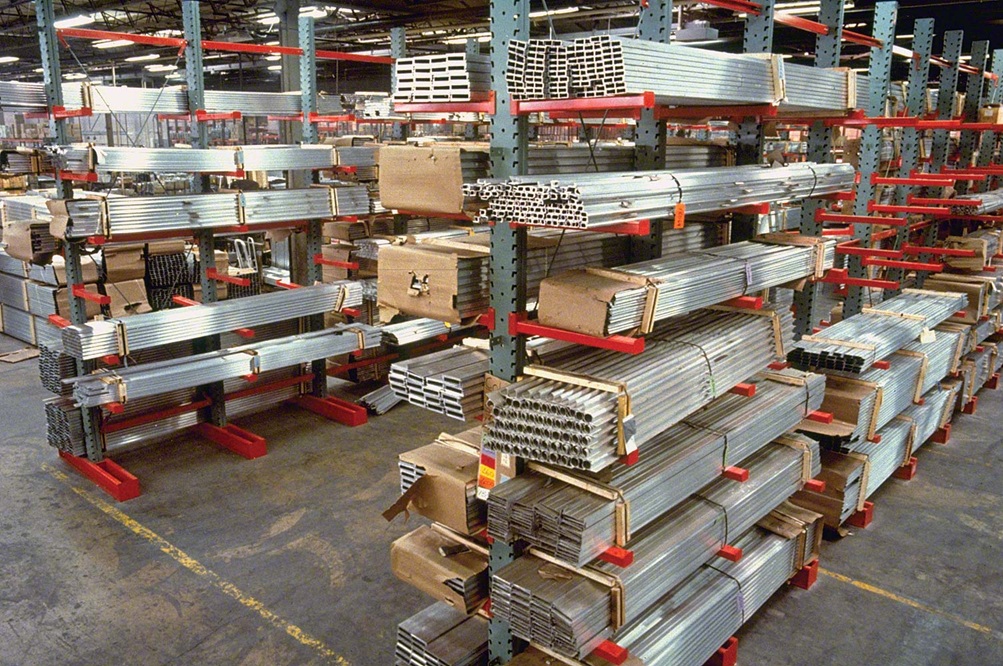

Cantilever Rack system in an industrial warehouse

Cantilever Rack in Springfield, IL

Name: Springfield Pallet Rack
Address: 2532 Farragut Dr, Unit F, Springfield, IL, 62704, US
Telephone: (217) 598-4023

Cantilever rack holds long material on arms off a center column, with no front posts in the way. Lumber, pipe, tubing, conduit and sheet goods load from the side, and a forklift or side-loader can reach any length.

Building materials and lumber are a steady part of Springfield's industry, and that keeps cantilever in demand.

(217) 598-4023

Lumber, Pipe and Building Materials

Arm length follows bundle depth. Arm spacing follows bundle length and stiffness, so stock does not sag between supports. Arm capacity follows the heaviest bundle. We size each from your product list.

Single-sided cantilever runs along a wall. Double-sided rows stand in the open and load from both sides.

Indoor and Yard Cantilever

Many building-materials businesses store long stock outside. Winter snow and ice make yard work slow, so we leave room between rows for a loader to clear. Indoors, cantilever can run nearly to the roof deck.

Around Springfield, cantilever shows up in light-industrial buildings off Industrial Ave in the Springfield Industrial Park and in contractor yards near the I-72 Riverton exit.

Cantilever Across Central Illinois

We plan cantilever for steel tubing and pipe distributors in Carlinville, steel plants in Pekin, contractor yards in Riverton and rail-served lumber in Lincoln.

Moving a yard or warehouse? Our warehouse relocation service takes down, labels and resets cantilever along with pallet rack.

Get a Cantilever Layout

Send the basics and we will come back with a layout and an itemized quote. Prefer to talk? Call (217) 598-4023.
